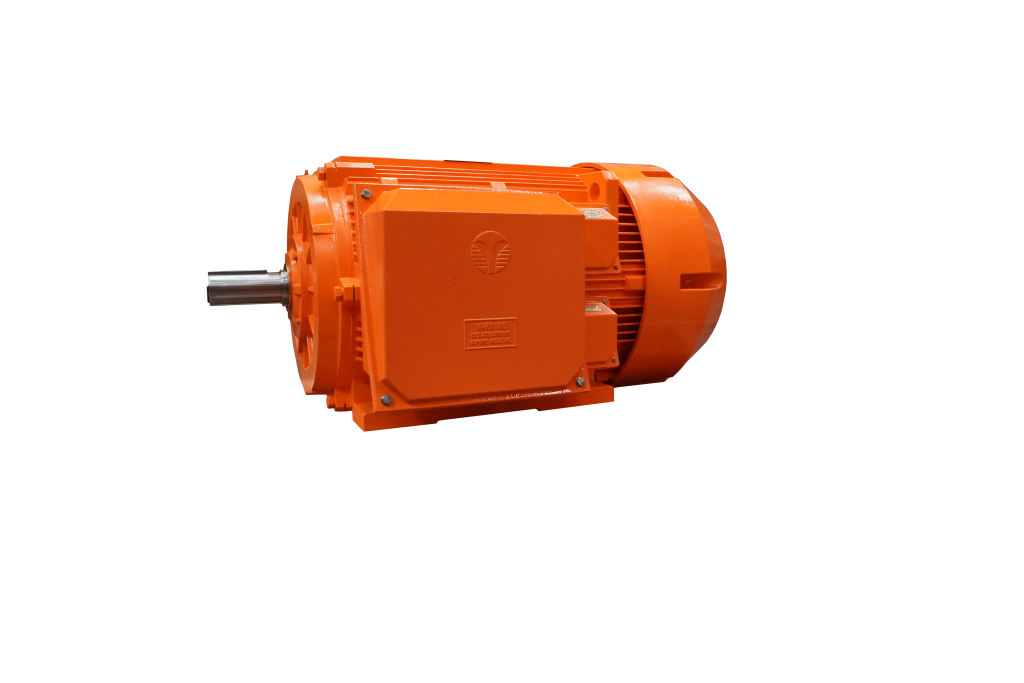

MPX Motor Range

The MPX is an IE4 design and utilizes all of the TCIM features with additional extras as standard.
These features as detailed below:
IP66 protection
Class H insulation with Class B rise
Oil seals fitted at both ends
Rotating slinger at both ends
Cast iron fan
Cast iron fan cowl
Sintered bronze porous drain plugs
Stainless steel name plate
Epoxy paint finish
Oversized Terminal Box, for ease of Cable Termination
INPRO shaft seal
Tropic Proof

Refer Specification Table on Page 29 for full list of features.
Surface Finish
MPX motors are subject to a two pack epoxy coating system with the final colour being RAL 2008 Bright Red Orange.
Operating parameters
MPX series motors are designed with the following parameters:
380V to 415V, 50Hz & 440V to 480V 60Hz supply
Continuous (S1) duty
Ambient temperatures up to 50°C
Installation up to 1000 MASL
Service factors up to 1.25

Available options
Insulated bearing & earth brush
Force ventilation
